Dutch woven sintered stainless steel wire mesh filter

2 to 3 layers of plain dutch woven wire mesh reinforcement layers with equal hole size and 3 or 4 stainless steel mesh fine layers after vacuum sintering, pressurizing and rolling together forms dutch woven sinter wire mesh. This type of stainless steel sintered wire mesh has evenly spaced openings and steady air permeability to flow, and has very great mechanical strength due to the heavy dutch woven wire mesh layers.

This type of sintered filter plate is commonly used in powder transport, laboratory fluid bed, driers, coolers and other dry solid materials.

Specification
  The standard materials are SUS304(AISI304), SUS316(AISI316), SUS316L(AISI316L).
  Size: 500×1000mm, 600×1200mm, 1000×1000mm,1200×1200mm,1200×1500mm.

  Dutch woven mesh type: 12×64/64×12

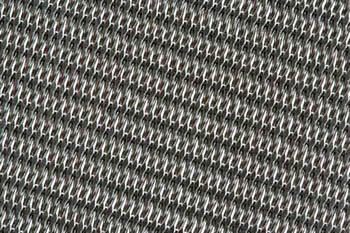

Sintered wire mesh with dutch weave mesh as reinforcement layer

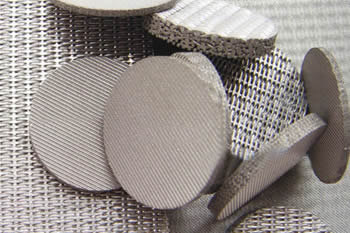

Dutch weave wire mesh panels and discs
