Perforated sintered wire mesh filter plate and tube

It is well used in oil wells, where fine particles need to be filtered under extremely high pressure conditions.

Perforated metal sinter wire mesh 5 layers

Perforated sintered wire mesh plate is made from several layers of stainless steel woven wire mesh and a perforated metal layer sintering together, usually consisting of five layers (as the left picture shown) - perforated layer, buffer layer, fine mesh, protective layer and filer layer. The above layers are sintered together to form a very study and strong multi-layers filter mesh. The perforated metal as reinforcement layer support the filter structure, which has very high compressive and mechanical strength.

Features: this type sintered mesh filter are resistant corrosion and high temperature, with wide filter rating ranges, having high mechanical strength and the ability to maintain a steady filter rating under high pressure. It is also easy to clean with a variety of filter cleaning techniques, and easy to fabricate, weld, punch, shear or made to filter cartridges and tube.

Perforated metal sintered filter can supply fine filtration, meanwhile protect and preserve the filtration layer. It is well used in oil wells, where fine particles need to be filtered under extremely high pressure conditions. Also used in food, beverage, water treatment, dust removing, pharmaceutical, polymer.

Perforated metal sintered wire mesh specifications:
Filter raiting: 2um-200um.
Materials: SUS 304, 316, 316L; or Alloy Steel Hastelloy, Monel, Inconel.
Standard size: 500 × 1000mm, 600 × 1200mm and 1000 × 1000mm, 1200 × 1200mm.

Perforated sintered mesh filter sheets, filter discs, and filter tube in a variety of diameters and lengths are also can be manufactured in our company.

Model	Filter Rating (um)	Structure	Thickness (mm)	Weight (kg/m²)	Porosity (%)
PES4-2.0T	2-200	30+Filter layer+30+φ4 × 5P × 1.0T	2.0	6.7	57
PES4-2.5T	2-200	30+Filter layer+30+φ5 × 7P × 1.5T	2.5	9.8	50
PES5-3.0T	2-200	60+Filter layer+60+20+φ6 × 8P × 2.0T	3.0	11.8	50
PES5-3.5T	2-200	20+Filter layer+20+10+φ8 × 10P × 2.0T	3.5	12.6	54
PES5-4.0T	2-200	20+Filter layer+20+10+φ8 × 10P × 2.5T	4.0	14.2	55
PES5-4.3T	5-200	20+Filter layer+20+10+φ10 × 13P × 3.0T	4.3	16.9	50
PES5-5.3T	5-200	20+Filter layer+20+10+φ10 × 13P × 4.0T	5.3	20.6	51

Note: The porosity is based on 20u filter layer, the thickness of the punching plate and the structure of the sintered mesh plate can be customized.

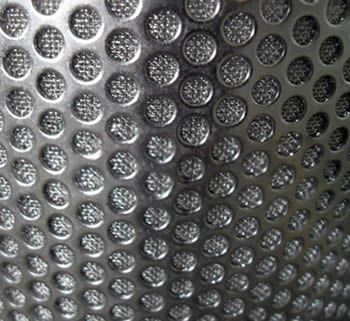

Perforated metal sintered wire mesh panel

Perforated metal provides increased mechanical strength for sintered mesh

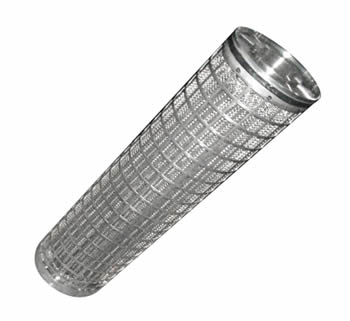

Filter element made from perforated metal sintered wire mesh

Perforated metal sintered filter element

Arc filter made of perforated metal sinter mesh

Arc sintered mesh filter with perforated metal

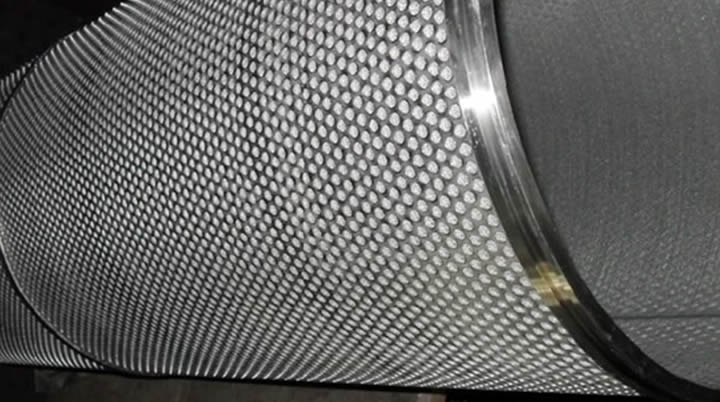

Filter tube made from perforated metal sintered wire mesh

Perforated metal sintered mesh filter tube
