5 - 7 layers sintered stainless steel wire mesh laminates

Our Sintered Wire Mesh Laminates made of perforated metal (perforated metal as support layer make the sintered filter easy backwash), stainless steel square wire mesh and plain dutch sintered wire cloth are the fine materials for filtration, usually 5 - 7 layers. Sintered mesh laminates can be welded to filter elements as tube, cylinders, disc and conical shapes. Different mesh size and thickness are available according to different filter purpose.

Specification
  Common Materials: Monel 400 alloy, AISI 304, 316, AISI 316L
  Filter accuracy from1µm to 200µm;
  Max size: 1200 × 1500;
  Standard size: 600 × 1200mm, 500 × 1000mm, 1000 × 1000mm, 1200 × 1200mm, 1200 × 1500mm;

Advantage:
  Resistant heat and corrosion, high mechanical strength;
  with the ability to maintain a steady filter rating under high pressure;
  Easy to clean with a variety of filter cleaning techniques and reuse;
  Easy to fabricate, weld, punch, shear, or otherwise form into various parts.

With wide range of filter ratings, stainless steel sintered mesh laminates are widely used in water treatment, liquid and gas filtration, drink, medical, chemical processing, food and beverage, pharmaceuticals and transportation industry.

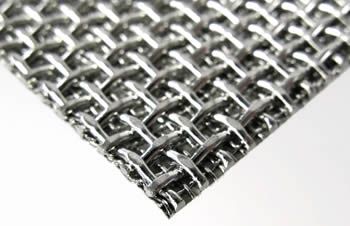

Plain woven square sintered wire mesh laminates

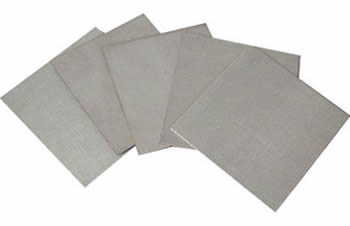

Square shape sintered mesh laminates

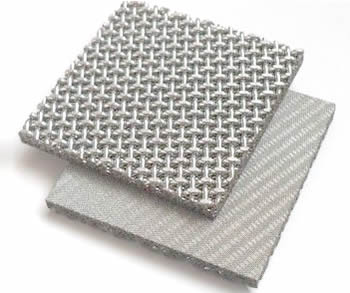

Sintered stainless steel mesh filter panels

Sintered wire cloth laminates - round and square shape
