Sintered metal mesh tube filter- industrial filtration tube

Stainless steel sintered metal mesh filter are several multilayer woven or perforated stainless steel wire mesh overlapped together, and then sintered in the vacuum sintering furnace. We can roll the sintered filer into tube shape and welding the seam forming.

sintered tube filer. Due to the stainless steel material, the sintered metal mesh tube filters has excellent properties of resistance corrosion and resistance high-temperature. It is a common use industrial filtration tube for liquid and gas filtration, used in petroleum, polyester, pharmacy, chemical fiber, food and beverage, and water treatment.

Sintered Stainless Steel Filter Tube Features:

  1. Filtration rating from 1µm to 250µm.

  2. The minimum outer diameter can be as small as 10mm.

  3. High mechanical strength, and can maintain a steady filtration performance under high pressure.

  4. This type of cylindrical sintered filter element is easy to clean, especially for backwashing.

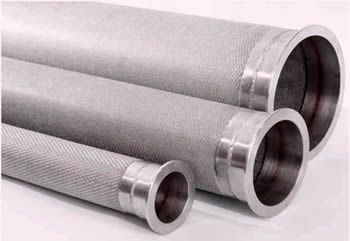

Sintered stainless steel filter tubes

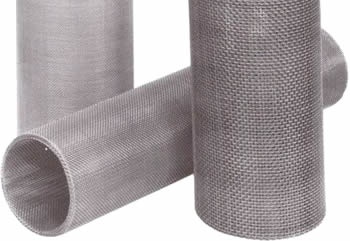

Industrial sintered mesh filtration tube
