Black Annealed Wire
Product introduction
Black
annealed wire gets its name from its plain black color.
Wire
Materials: Carbon steel wire.
Uses: Black annealed wire is mainly processed into coil wire, spool wire or big package wire.
Or further straightened and cut into cut wire and U type wire.
Annealed
wire is used as tie wire or baling wire in building, parks and daily binding.
Packing:

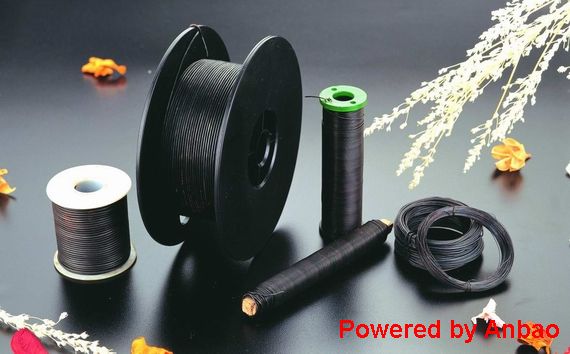

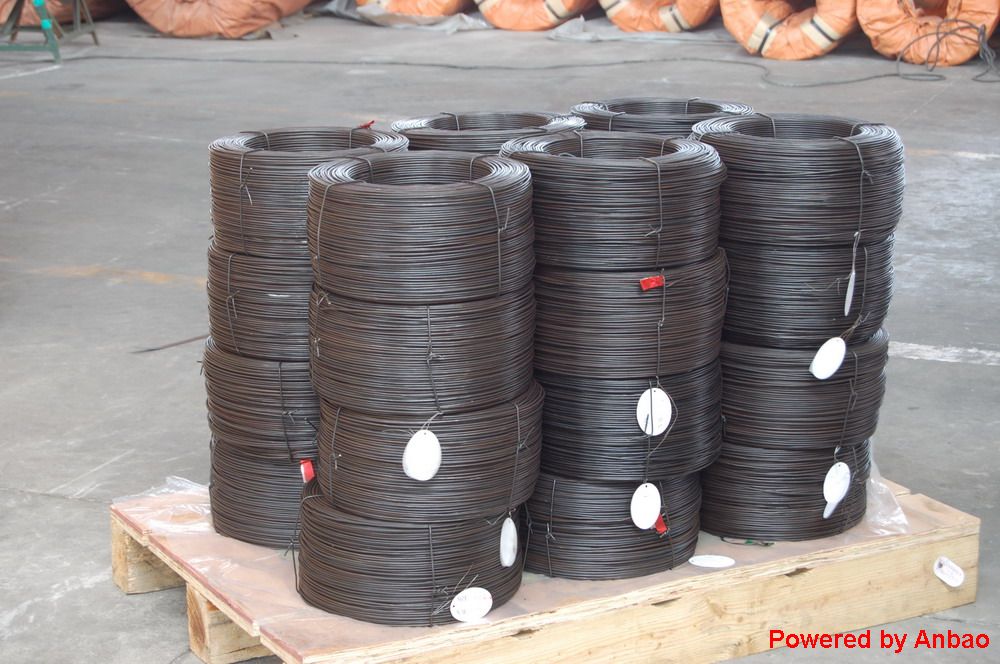

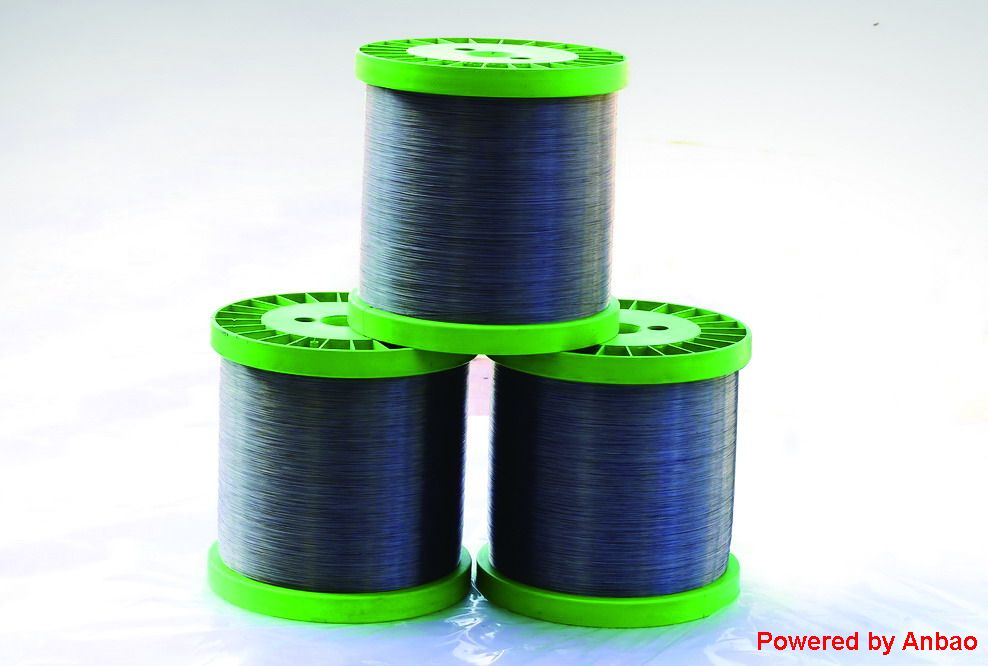

Spools, Coils.
Wire
Diameters: Similar to galvanized iron wire, from 5mm to 0.15mm (wire gauge 6#
to 38#).
Detailed
introduction
Standard
Gauge: from 5# --38# (0.17mm-4.5mm)
Tensile Strength: 35-55kg/mm2
Elongation rate: 10%-25%
Characteristics and Application: Strong flexibility plasticity and a wide rang of uses such as daily binding construction use, industrial use handcraft making net etc.

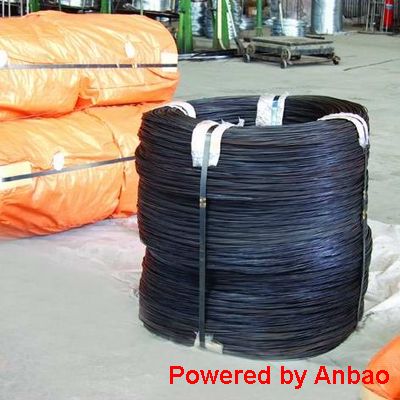

Commom packing: 0.5kg -1000kgs/coil, plastic film inside then wrapped with white or
other color PVC weaving bag or hessian cloth outside.
Wire Gauge |
SWG in mm |
BWG in mm |
In Metric System mm |
8# |
4.06 |
4.19 |
4.00 |
9# |
3.66 |
3.76 |
- |
10# |
3.25 |
3.40 |
3.50 |
11# |
2.95 |
3.05 |
3.00 |
12# |
2.64 |
2.77 |
2.80 |
13# |
2.34 |
2.41 |
2.50 |
14# |
2.03 |
2.11 |
- |
15# |
1.83 |
1.83 |
1.80 |
16# |
1.63 |
1.65 |
1.65 |
17# |
1.42 |
1.47 |
1.40 |
18# |
1.22 |
1.25 |
1.20 |
19# |
1.02 |
1.07 |
1.00 |
20# |
0.91 |
0.89 |
0.90 |
21# |
0.81 |
0.813 |
0.80 |
22# |
0.71 |
0.711 |
0.70 |
23# to 34# also available for galvanized iron wire |
Black Anneald Wire |
||||
Wire Diameter |
Strength |
Packing |
Weight |
Application |
0.16mm-0.6mm |
30-40kg |
Coil or spools |
2-100kgs |
Daily binding construction Industrial use handcraft making net etc. |
0.6mm-5.0mm |
30-40kg |
Big package |
100-800kgs |
|
0.16mm-0.6mm |
60-70kg |
Coils or spool |
2-100kgs |
|
0.6mm-5.0mm |
60-70kg |
Big package |
100-800kgs |
All can be produced according to customers' actual requirement.
