  • Dutch Wire Mesh

    Dutch Wire Mesh

    Dutch Wire Mesh

  • Detailed description
  • Dutch Wire Mesh

    Materials: Stainless steel wire(AISI304/304l/316/316L/302/310)

                       Carbon steel(galvanized or non-galvanized)

                       Brass,Phosphor bronze,Aluminum alloy,Nylon,Plastic

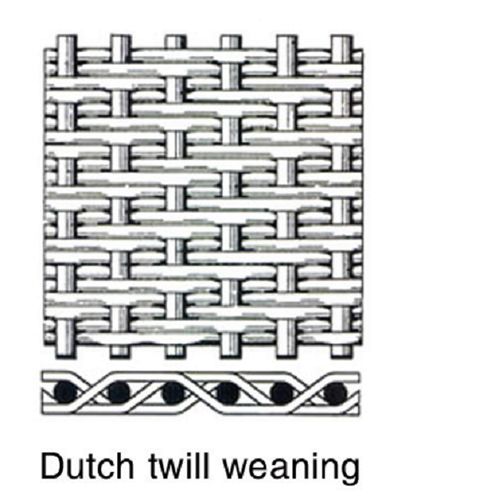

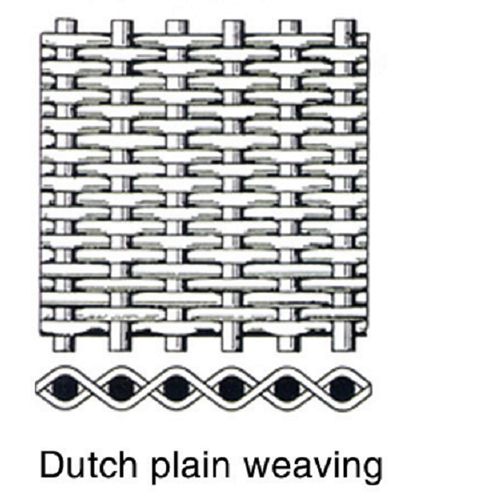

    Weaving: Dutch plain weave, Dutch twilled weave

    Features and uses: Fine wire cloth mainly for filtration, sieving, screening and various industrial separation

    Mesh

    Wire Dia. (MM)

    Material (AISI)

    12mesh x 64mesh

    0.58 x 0.40

    304 or 316

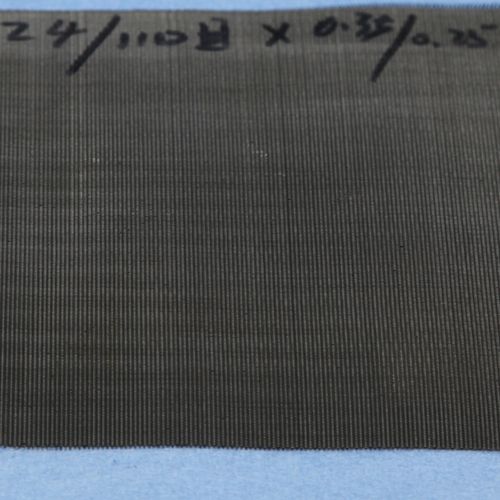

    24mesh x 110mesh

    0.36 x 0.25

    304 or 316

    14mesh x 88mesh

    0.50 x 0.33

    304 or 316

    30mesh x 150mesh

    0.23 x 0.18

    304 or 316

    40mesh x 200mesh

    0.18 x 0.13

    304 or 316

    50mesh x 250mesh

    0.14 x 0.11

    304 or 316

    80mesh x 700mesh

    0.10 x 0.08

    304 or 316

    165mesh x 800mesh

    0.071 x 0.040

    304 or 316

    165mesh x 1400mesh

    0.06 x 0.04

    304 or 316

    200mesh x 1800mesh

    0.05 x 0.032

    304 or 316

    825mesh x 2300mesh

    0.035 x 0.025

    316L

    400mesh x 2800mesh

    0.030 x 0.02

    316L
