    Welded Wire Mesh

    Welded Wire Mesh

  • Detailed description

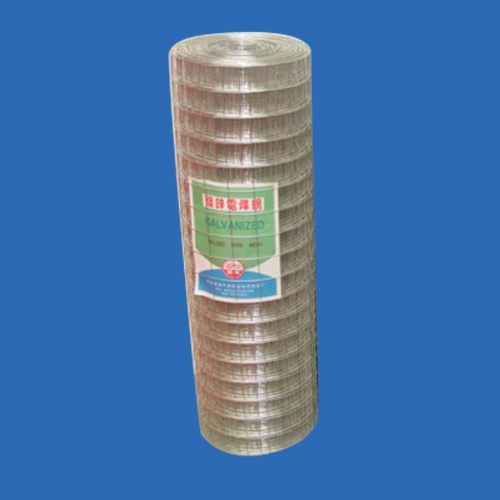

  • Welded Wire Mesh



    Material: stainless steel wire(AISI304/304L/316/316L)

    Hot dipped before welding

    Hot dipped after   welding
    Electro galvanizing before welding
    Electro galvanizing after    welding

    PVC coated



     Welded Wire Mesh

    Opening

    Wire Diameter<BWG>

    In inch

    In metric unit(mm)

    1/4" x 1/4"

    6.4mm x 6.4mm

    22,23,24

    3/8" x 3/8"

    10.6mm x 10.6mm

    19,20,21,22

    1/2" x 1/2"

    12.7mm x 12.7mm

    16,17,18,19,20,21,22,23

    5/8" x 5/8"

    16mm x 16mm

    18,19,20,21,

    3/4" x 3/4"

    19.1mm x 19.1mm

    16,17,18,19,20,21

    1" x 1/2"

    25.4mm x 12.7mm

    16,17,18,19,20,21

    1-1/2" x 1-1/2"

    38mm x 38mm

    14,15,16,17,18,19

    1" x 2"

    25.4mm x 50.8mm

    14,15,16

    2" x 2"

    50.8mm x 50.8mm

    12,13,14,15,16

    Technical Note:
    1,Standard roll length: 30m;width: 0.5m to 1.8m
    2,Special sizes available at request
    3,Packing: in waterproof paper in rolls. Custom packing available at request.

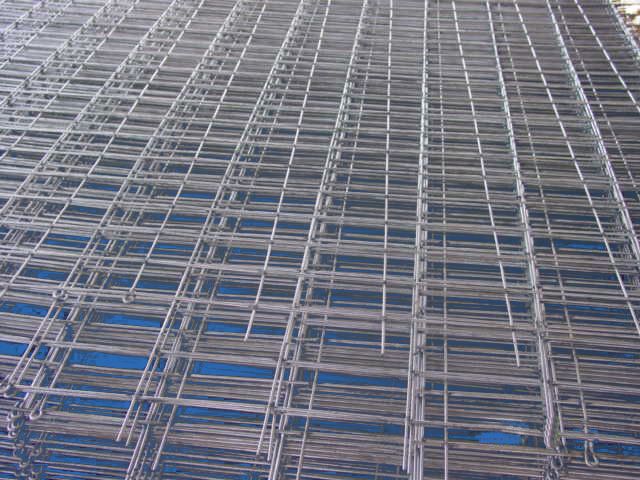

    Welded Fence Mesh

    Opening

    Wire Diameter<BWG>

    In inch

    In metric unit(mm)

    2" x 3"

    50mm x 75mm

    2.0mm,2.5mm,1.65mm

    3" x 3"

    75mm x 756mm

    2.67mm,2.41mm,2.11mm,1.83mm,1.65mm

    2" x 4"

    50mm x 100mm

    2.11mm,2.5mm

    4" x 4"

    100mm x 100mm

    2.0mm,2.5mm

    Technical Note:
    1,Standard roll length: 30m;width: 0.5m to 1.8m
    2,Special sizes available at request
    3,Packing: in waterproof paper in rolls. Custom packing available at request.

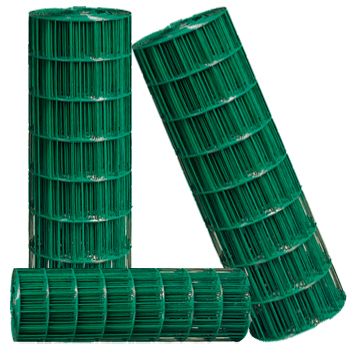

    PVC Coated Welded Mesh

    Opening

    Wire Diameter<BWG>

    In inch

    In metric unit(mm)

    1/2" x 1/2"

    12.7mm x 12.7mm

    16,17,18,19,20,21

    3/4" x 3/4"

    19mm x 19mm

    16,17,18,19,20,21

    1" x 1"

    25.4mm x 25.4mm

    15,16,17,18,19,20

    Technical Note:
    1,Standard roll length: 30m;width: 0.5m to 1.2m
    2,Special sizes available at request
    3,Packing: in waterproof paper in rolls. Custom packing available at request.
