  • Barbed Wire

    Barbed Wire

    Barbed Wire

    Barbed Wire

    Barbed Wire

    Barbed Wire

    Barbed Wire

    Barbed Wire

  • Detailed description

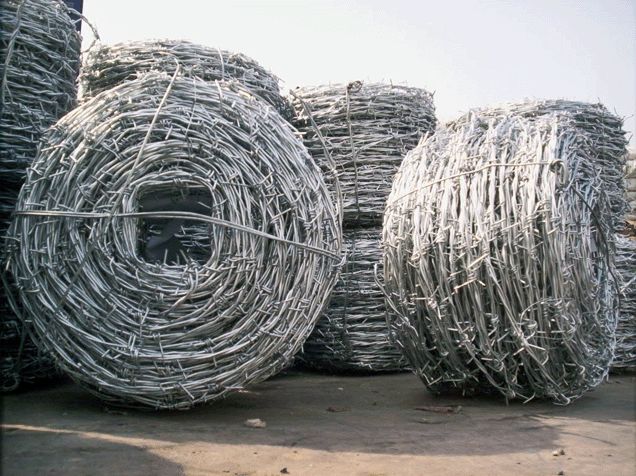

  • Barbed Wire

    Wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.

    General Use: Barbed wire mainly serves in protecting of grass boundary, railway, highway, etc.


    Barbed Wire Specification

    Type

    Wire Gauge (SWG)

    Barb Distance (cm)

    Barb Length (cm)

    Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire



    10# x 12#

    7.5-15

    1.5-3

    12# x 12#

    12# x 14#

    14# x 14#

    14# x 16#

    16# x 16#

    16# x 18#

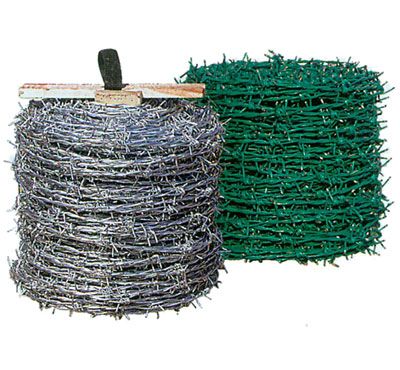

    PVC coated barbed wire;

    PE barbed wire

    before coating

    after coating

    7.5-15

    1.5-3

    1.0mm-3.5mm

    1.4mm-4.0mm

    BWG11#-20#

    BWG8#-17#

    SWG11#-20#

    SWG8#-17#



    PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request





     Packing: With wooden spool* on pallet, or Rolled without pallet.

                 *(A hole was bored in the Wooden spool's center, allowing retailers to slip spools onto a horizontal bar for easy unrolling.)
