Aluminum Wire

Anbao Corp.

1.Conductivity: above 40%-45%
2.Surface: smooth
3.TS: 250MPA--320MPA
4.Extension: 4%-8%(5052/5154)

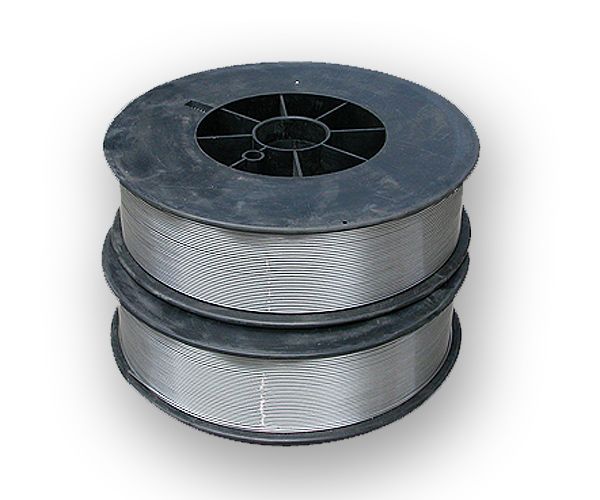

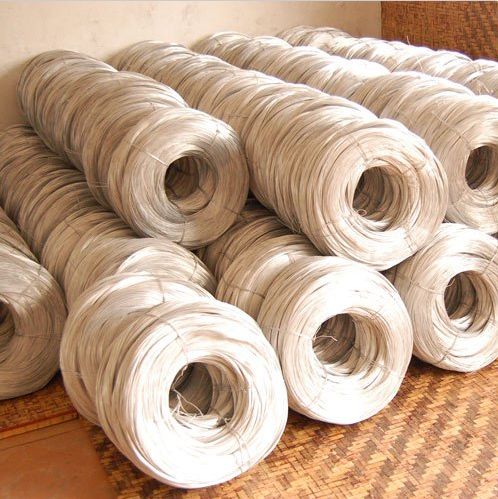

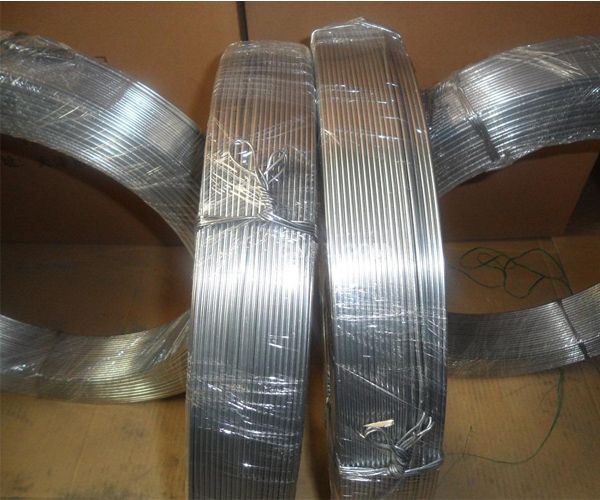

Aluminum wire

1. 5052, 5154 aluminum alloy wire

2. TS:250mpa-320mpa

3. Hard

4. Size:1.0mm--6.5mm

Marketing series:5154,5052,5050,5056

In common, 5154 ,5052 aluminium wire are widy used as fence ,rivit ,nail,zipper,construction material

We can do special for you according to your request.

Apply to

1) Aircraft, transport vehicles, vessels, instruments, metal products

2) Processing to the rivets, Zipper, nails, etc

3 Welding Aluminum Magnesium alloy wire which magnesium content is exceeding 3%

4) Sanitary equipment hose braiding materials, automotive and machinery oil hose material

5) Electronic industries and telecommunications industries

6) Textile shield for power cable

Copper, Aluminum, CCA, CCAM performance parameters reference table

parameter performance name	Tensile strength (Mpa)	Mainstream resistivity (Ωmm2 / m)	Elongation (%)	Density (g/mm³)	Heat (AJ/Kg°C)
Copper	205-270	≤0.018	15~20	8.90	0.39 * 10³
aluminum	100-125	≤0.0285	8-15%	2.70	0.88 * 10³
CCA	120-140	≤0.0268	15-25%	3.63	0.79 * 10³
CCAM	160-350	≤0.0245	10-20%	2.85
