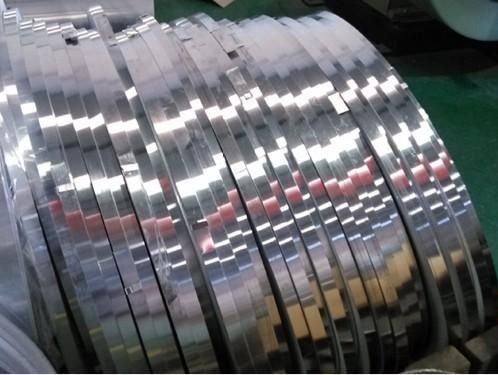

  • Armouring Steel Tape

  • Detailed description
  • Cable Armouring Steel Tape


    Armouring steel tape is manufactured from steel sheets coated with zinc (Hot dipped galvanization) on four sides.

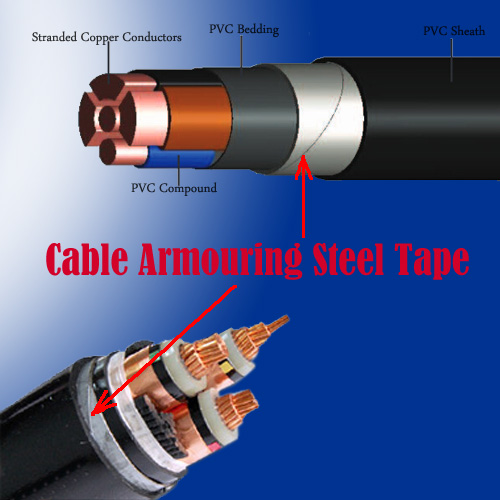

    Usage inclued armouring jelly filled telephone cables and underground power cables.

    Cable Armouring Steel Tape


    Specifications

    1. Tensile Strength: 28 to 50 kgf / sq. mm
    2. Elongation: minimum 10% on 250 mm

    1. Mass of Zinc Coating: 60 g/m2 to 275 g/m2 , both sides including Edges
                                           (total weight on all four sides) depending upon Buyer’s Requirement.


    Tape Size
    1. Thickness: 0.15 mm to 2.00 mm
    2. Width: 4 mm to 150 mm
    3. Coating: 10 microns to 60 microns.





    Standards: ASTM A90, ASTM A93, ASTM A459, BS 2989, IS 3975 or as per Buyers Specification.



    Coil Size
    1. Inside Diameter (ID): 125 mm to 200 mm
    2. Outside Diameter (OD): 400 mm to 800 mm or as per Buyer’s Requirement.
