Barrier Explosion-Proof Wall

Anbao Corp.

Barrier Explosion-Proof Wall

1. Wire Diameter of Explosion Proof Wall: 4.0mm , 4.5mm , 5.0mm

2. Hole Size of Explosion Proof Wall: 50mm x 50mm, 3 Inch x 3 Inch(76.2mm x 76.2mm), 75mm x 75mm, etc.

3. Geotextile of Explosion Proof Wall: 280g/sqm , 300g/sqm

4. Geotextile Color:Green , Grey , Sand , etc.

5. Material of Barrier Explosion Proof Wall: Hot dipped galvanized wire or Galfan coated wire.

Specification List of Hesco Barrier Explosion Proof Wall

Barrier Explosion-proof Wall
Model	Height	Width	Length
01	4'6"(1.37m)	3'6"(1.06m)	32'9"(10m)
02	2'(0.61m)	2'(0.61m)	4'(1.22m)
03	3'3"(1.00m)	3'3"(1.00m)	32'9''(10.00m)
04	3'3"(1.00m)	5'(1.52m)	32'9''(10.00m)
05	2'(0.61m)	2'(0.61m)	10'(3.05m)
06	5'6"(1.68m)	2'(0.61m)	10'(3.05m)
07	7'3"(2.21m)	7'(2.13m)	91'(27.74m)
08	4'6"(1.37m)	4'(1.22m)	32'9''(10.00m)
09	3'3"(1.00m)	2'6"(0.76m)	30'(9.14m)
10	7'3''(2.21m)	5'(1.52m)	100'(30.5m)
11	4'(1.22m)	12'(0.30m)	4'(1.22m)
12	7'(2.13m)	3'6"(1.06m)	108'(33m)

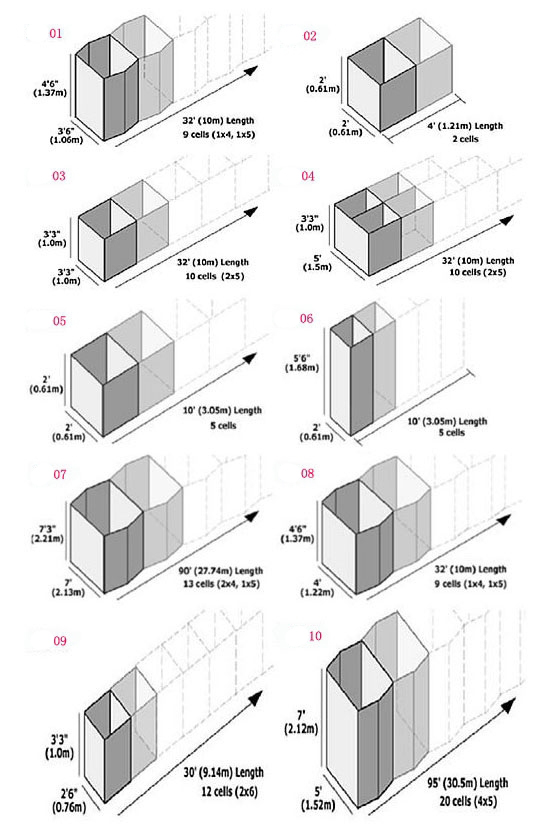

The Drawing of Hesco Barrier Explosion Proof Wall

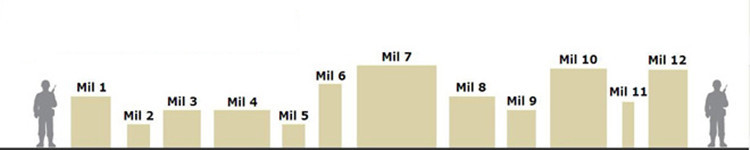

The Height of Hesco Barrier Explosion Proof Wall

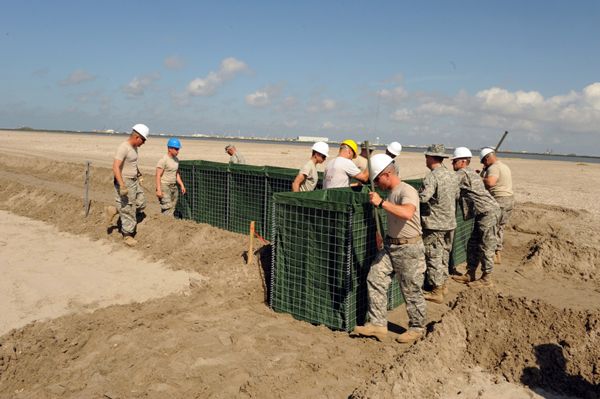

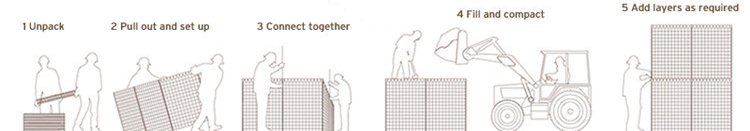

The Installation of Hesco Barrier Explosion Proof Wall

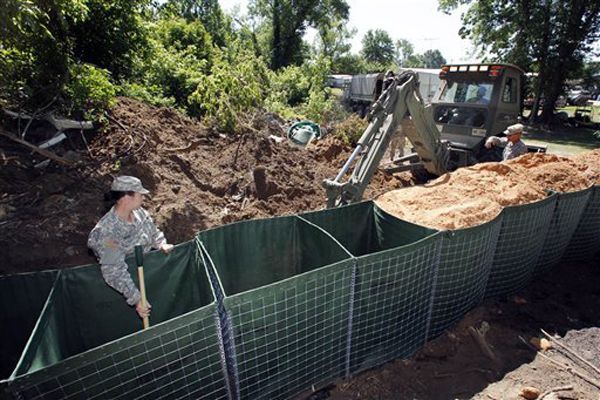

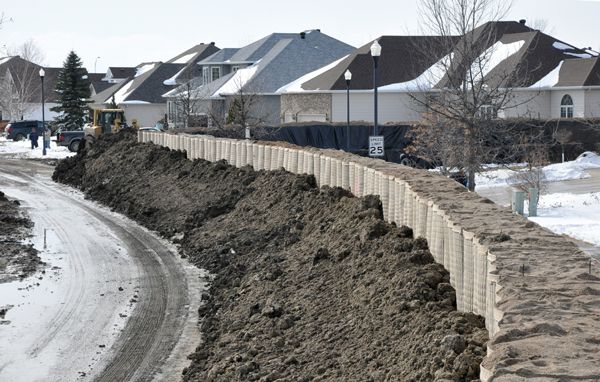

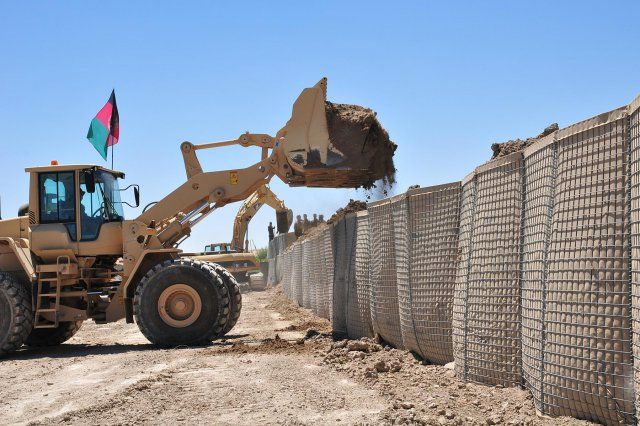

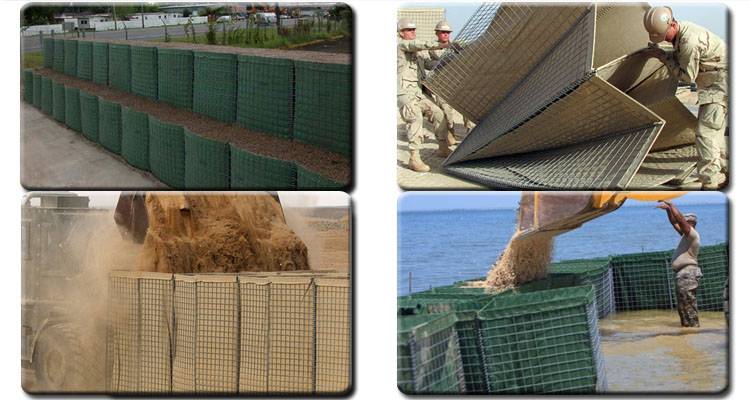

Application of Hesco Barrier Explosion Proof Wall

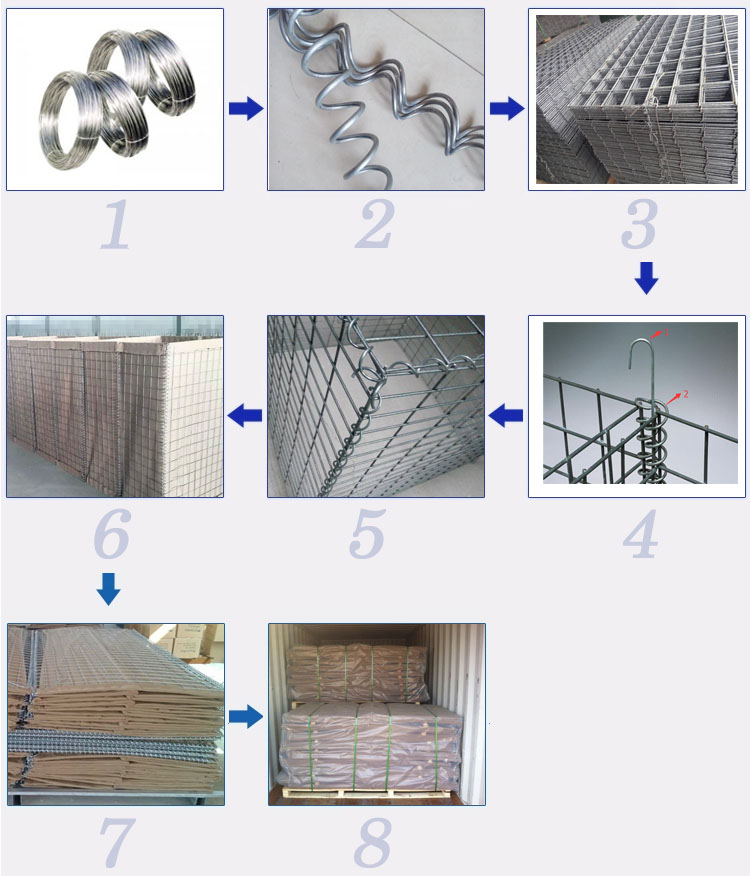

Production Flow
