Ceiling Tile Hanger Wire

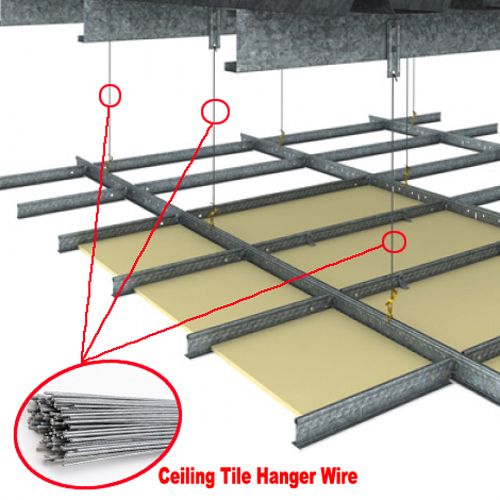

HANGER WIRE IS DESIGNED FOR OVERHEAD SUPPORT OF ACOUSTICAL AND GYPSUM PANEL CEILING.

Galvanized for corrosion resistance

Available in 8, 9 and 12 gauge in numerous lengths, Straightening and cut

No Straightening Spiral Trace on Surface

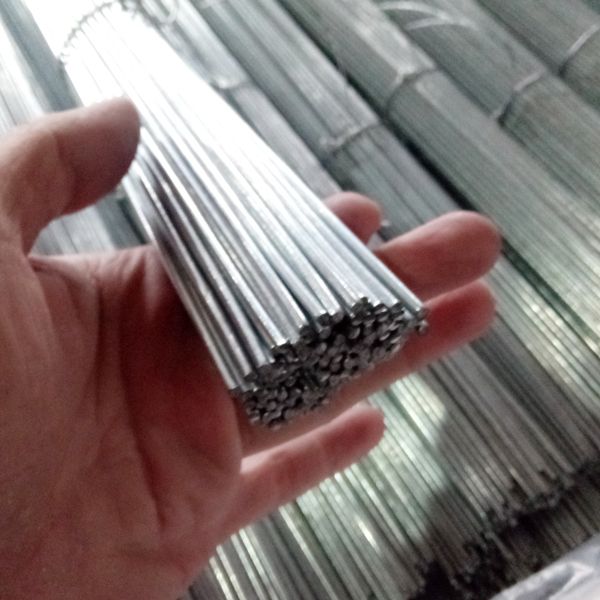

The cut ends are smooth and burr-free.

Meets or exceeds ASTM A641, Class 1

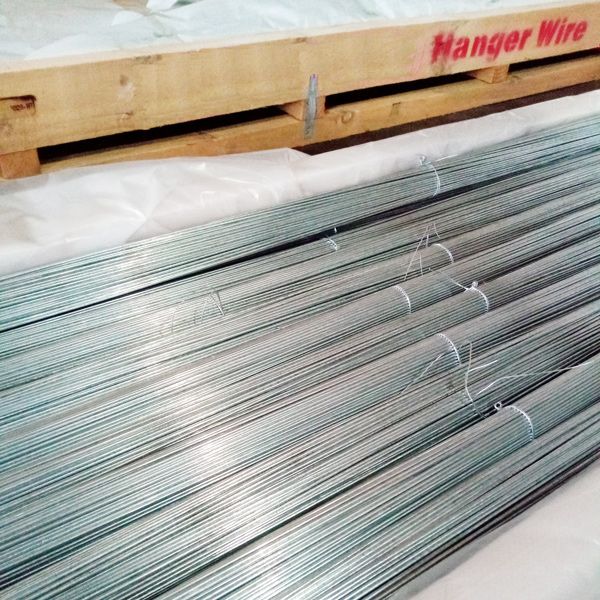

HANGER WIRE IS CLEARLY LABELED AND CAREFULLY PACKED TO ENSURE THAT IT STAYS CLEAN, DRY AND EASY TO IDENTIFY.

1. Available in master bundles, or conveniently packed in crates for easy loading or unloading
2. Each bundle of hanger wire is labeled with tags containing product information
3. Crates are lined with clean, clear poly sheeting for extra protection

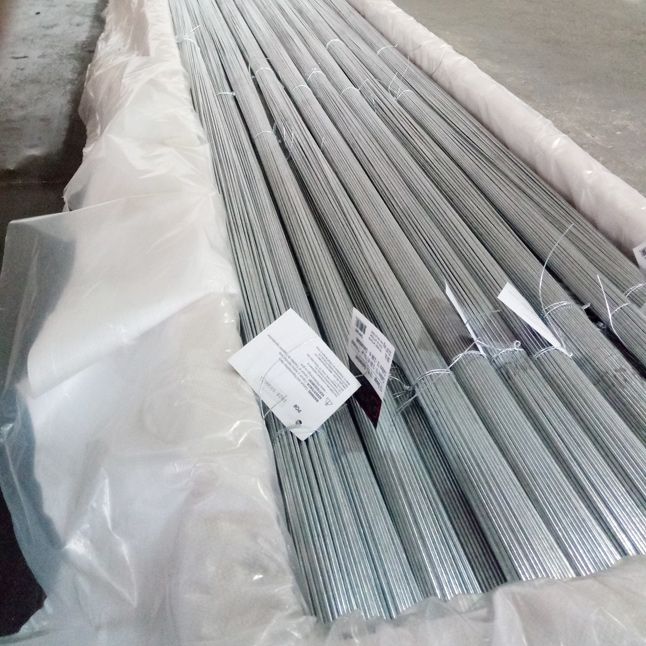

4. Hanger wire is enclosed in plastic in crates; plastic is sealed with plastic tape
5. Product contained in crate with cross boards and steel strapping

6. Crate stamped with master label and shipping mark.

Gauge	Inch/mm	Tolerance	Length	Weight of Coating (Approximate Average)
12 gauge	0.106" / 2.67 mm	±0.0024" / ±0.06 mm	4 feet	13 microns
			6 feet
			8 feet
			10 feet
			12 feet
			14 feet
			16 feet
			18 feet
			20 feet

U Wire Product

16 gauge	0.0620"/1.57mm	±0.0015"/±0.04mm	45 inches	6 microns
18 gauge	0.0476"/1.21mm

Coil Product

Gauge	Inch/mm
8 gauge	0.162"/4.11 mm
9 gauge	0.148"/3.76 mm
12 gauge	0.106"/2.67 mm

Tensile Strength
	8 gauge	9 gauge	12 gauge	18 gauge
Tensile Strength (PSI)	65-75 KSI	55-65 KSI	55-65 KSI	55-65 KSI
Breaking Strength (PSI)	65-75 KSI	55-65 KSI	55-65 KSI	55-65 KSI
