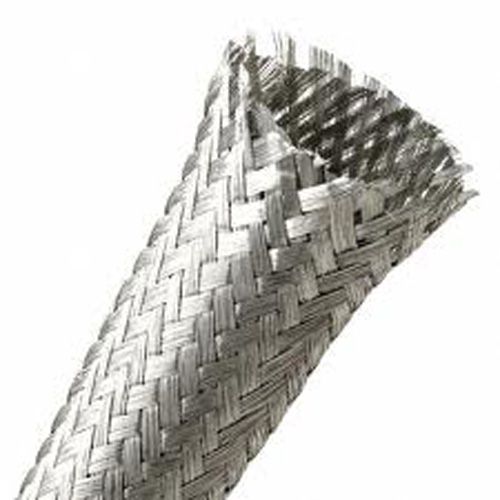

1)Application: for cable braiding, hose braiding, wire mesh woven etc.

2) Material: Carbon steel wire, mild steel wire.

3)Diameter: 0.15mm~2.00mm

4) Technical Info:

Nominal wire diameter

T/S

N/mm2

Zn coating

g/m2

El.

Packing

0.15,0.24,0.28,0.30,0.40,…2.00mm

320-500

Elec:min12 or 15

Hot:Min.25

15-30

DIN160

DIN200

DIN250

DIN355

MP100

HY100(90kg/steel spool)

In coils

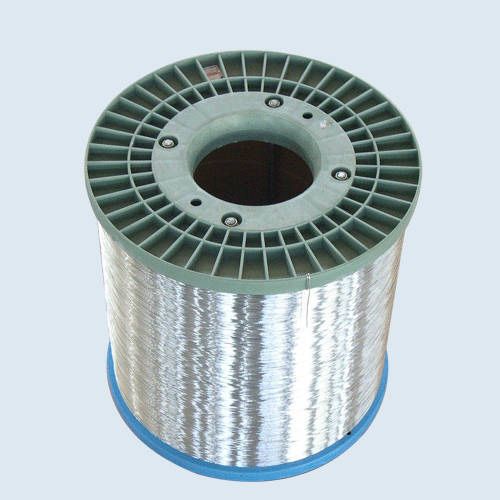

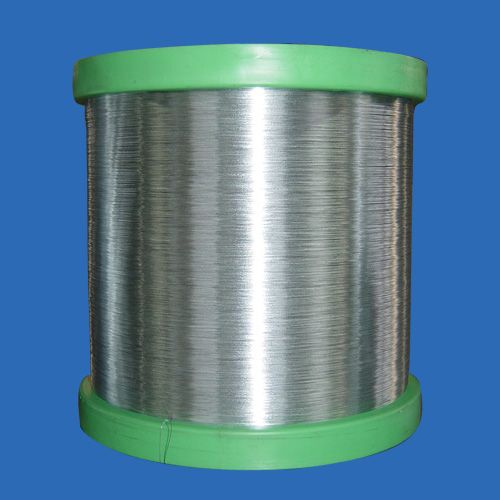

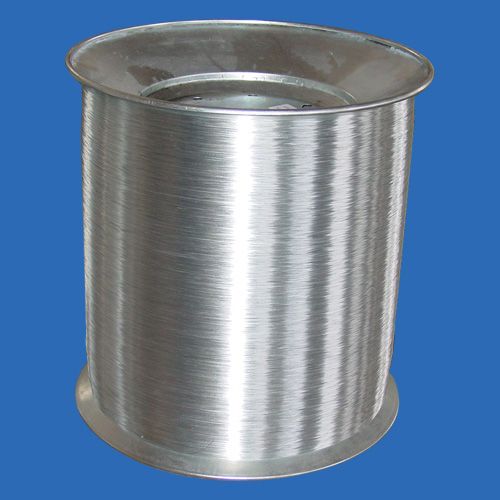

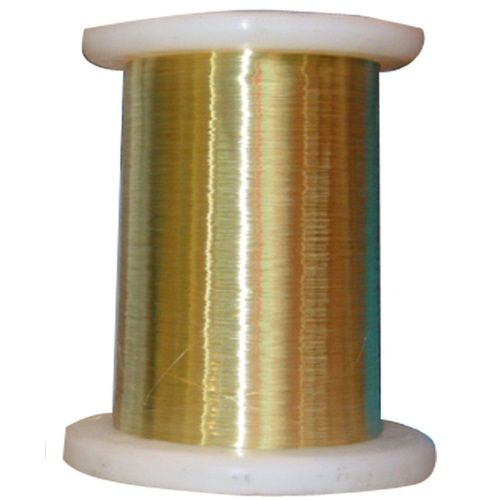

5) Packing: 2kg~500kg, on spool or in coils

6) Advantages: Thick zinc coating, good corrosion resistance, firm zinc coating, etc.

7) All can be produced according to customers’ actual requirement.
