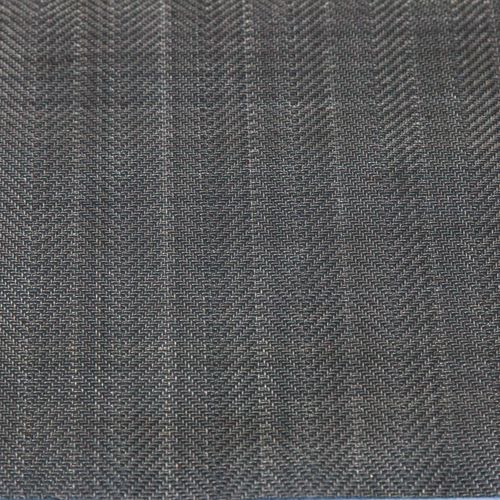

Twill Weave Wire Mesh

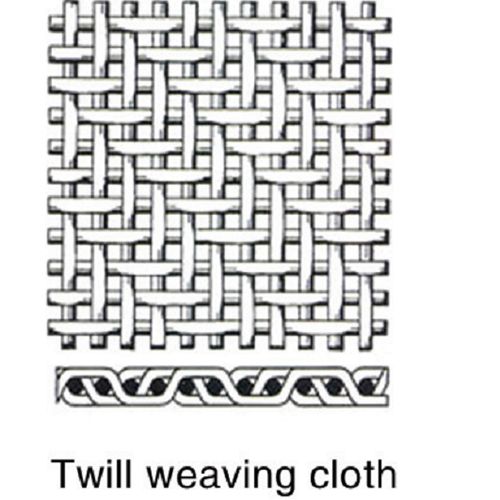

Each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both(warp and weft)is mostly the same.
Characteristics: square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm.
Mesh Count
Warp x WeftWire Dia
mmWire Dia
inchAperture
mmAperture
inchMicron
Rating100 x 100
0.1250
0.0049
0.1295
0.0051
130
120 x 120
0.0939
0.0037
0.1168
0.0046
117
165 x 165
0.0482
0.0019
0.1041
0.0041
104
200 x 200
0.0584
0.0023
0.0685
0.0027
68
250 x 250
0.0533
0.0021
0.0482
0.0019
48
300 x 300
0.0355
0.0014
0.0482
0.0019
48
300 x 300
0.0400
0.0016
0.0431
0.0017
45
325 x 325
0.0355
0.0014
0.0406
0.0016
41
350 x 350
0.0304
0.0012
0.0431
0.0017
43
400 x 400
0.0304
0.0012
0.0330
0.0013
33
500 x 500
0.0254
0.0010
0.0253
0.0010
25
