  • Spring Wire & Alloy Spring Wire

    Spring Wire & Alloy Spring Wire

    Spring Wire & Alloy Spring Wire

    Spring Wire & Alloy Spring Wire

    Spring Wire & Alloy Spring Wire

    Spring Wire & Alloy Spring Wire

  • Detailed description
  • Spring Wire & Alloy Spring Wire


    Spring Wire


    Application: for general application spring and mechanical spring.
    Beside to make the wire according to the standard, we also try to supply the wire according customer's

    special requirement.


    Technical specification:

    (1)Standard: DIN17223-1-1984,EN10270-1,ASTM-A227,GB4357-89
    (2)Size: 0.20mm-14.0mm


    1. General introduction:
    Raw material is rigorously selected and approved before put into processing while five main

    chemical compostion results shown as below:

    C

    Si

    Mn

    P

    S

    0.40-1.00

    Max 0.35

    0.30-1.50

    Max 0.04

    Max 0.04



    For serving spring and wire form industry, high tensile strength is not the ultimate goal to pursue,

    but the balance of flexibility and tensile strength to prevent our wire from deformed or broken up

    during winding in spring machine. In addition, for other usage, our products also have gained a

    sound reputation from the appliance as controlling cable or connecting wire for automobile industry

    and hard needle. Hot-dipped and electro-galvanized spring wire available.



    2. Range of application:

    (1) mattress spring

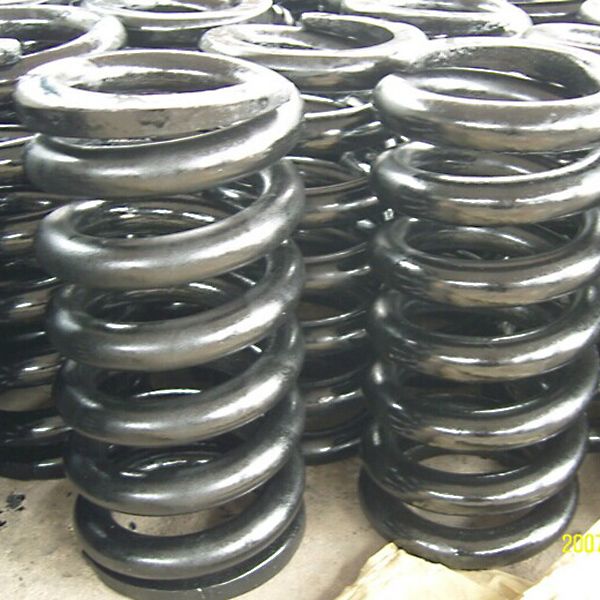

    (2) compression spring
    (3) extension spring
    (4) torsion spring
    (5) mechanical spring
    (6) wire forms
    (7) core of controlling cable
    (8) connecting wire

    (9) hard needle


    3. Specifications:

    (1) 0.30mm-13.00mm to comply with DIN17223-1-1984 Class B
    (2) 0.30mm-3.50mm to comply with DIN1723-1-1984, Class C, EN10270-SH
    (3) 0.30mm-2.00mm to comply with DIN1723-1-1984 Class D
    (4) 0.30mm-13.00mm to comply with ASTM-A227 grade I and II
    (5) lightly-oiled or heavily-oiled subject to requirement.
    (6) Other standards are subject to requirements, such JIS, AS or GB




    DIAMETER (MM)

    TENSILE STRENGTH

    (MPa)

    TORSIONS

    Min./360°

    1

    0.30mm

    2010-3000

    20

    2

    0.45mm

    2200-2600

    20

    3

    0.50mm

    2200-2600

    20

    4

    0.55mm

    2150-2550

    20

    5

    0.60mm

    2110-2500

    20

    6

    0.70mm

    2060-2450

    20

    7

    0.80mm

    2010-2400

    20

    8

    0.90mm

    2010-2350

    20

    9

    1.00mm

    1960-2300

    20

    10

    1.20mm

    1910-2250

    20

    11

    1.40mm

    1860-2210

    20

    12

    1.60mm

    1810-2160

    20

    13

    1.80mm

    1760-2110

    15

    14

    2.00mm

    1710-2010

    15

    15

    2.30mm

    1660-1960

    15

    16

    2.60mm

    1660-1960

    15

    17

    2.90mm

    1620-1910

    12

    18

    3.20mm

    1570-1860

    12

    19

    3.60mm

    1570-1810

    12

    20

    4.00mm

    1570-1810



    21

    4.50mm

    1520-1710



    22

    5.00mm

    1470-1710



    23

    5.50mm

    1470-1710



    24

    6.0mm-8.0mm

    1370-1660



    25

    9.0mm-14.0mm

    1130-1420

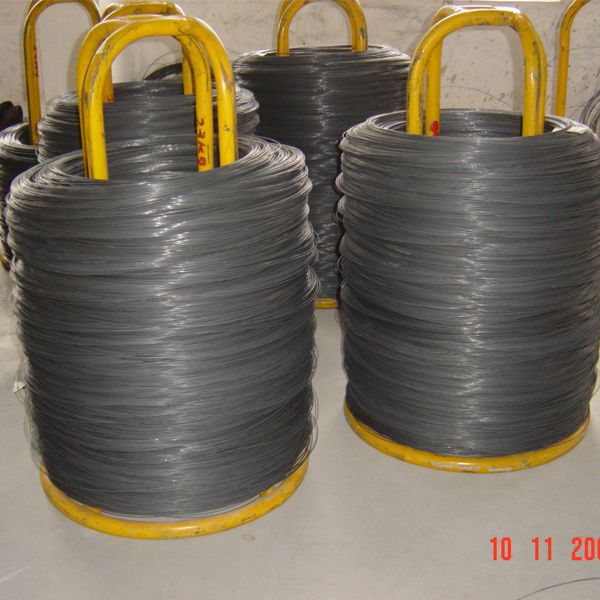

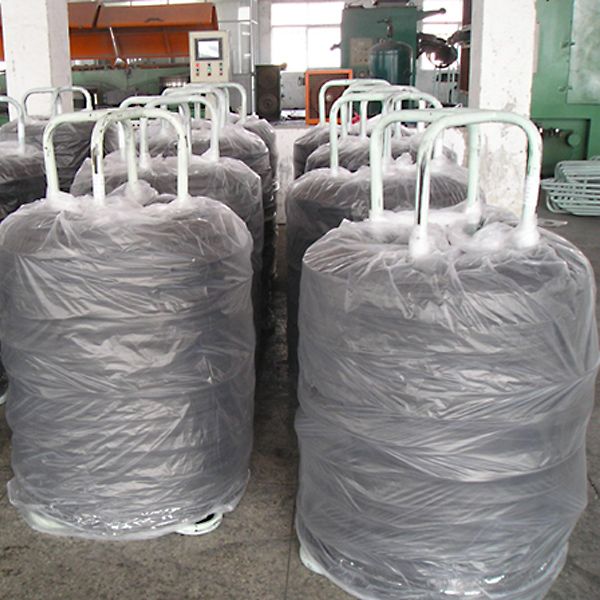

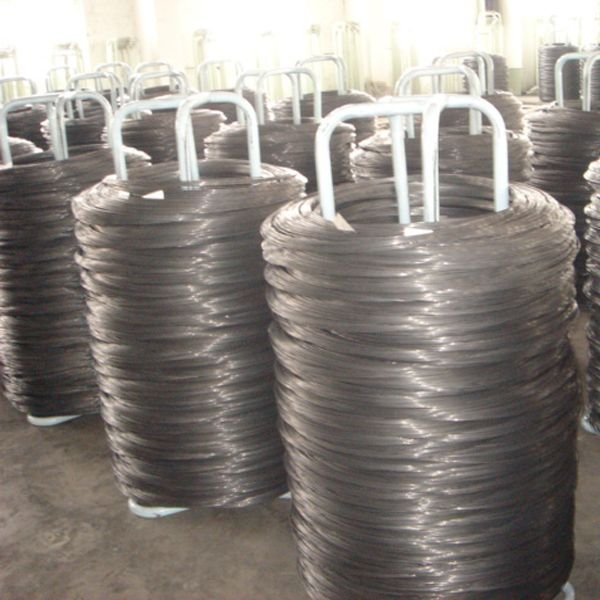

    Packing: in coil or in carrier
    Coil weight: 5-1000kgs depends on different sizes

    Normally it is oiled to anti rust.


    Alloy Spring Wire



    Application: for valve or spring (alloy wire)

    Material: 55CrSi, 60Si2MnA, 50CrVA etc. (alloy wire)

    Diameter: 0.5-17.0mm(alloy wire)

    Tensile strength: there are 3 classes including VD, VD CrV, VD SiCr

    Specification: DIN17223/2-1990, ASTM A231, ASTM A232 etc.


    Material

    Chrome Vanadium

    Chrome Silicon



    ASTM A 231

    ASTM A 401

    Nominal Analysis

    C -- .48 - .53%

    C -- .51 - .59%



    Cr -- .80 - 1.10%

    Cr -- .60 - .80%



    V -- .15 min%

    Si -- 1.20 - 1.60%

    Minimum Tensile Strength

    1900-3000N/mm2

    2350-3000N/mm2







    Modulus of Elasticity E

    30

    30

    psi x 103





    Design Stress % Minimum

    45

    45

    Tensile





    Modulus in Torsion

    11.5

    11.5

    G psi x 106





    Maximum Temp. °F

    425

    475

    Maximum Temp. °C

    218.5

    246

    Rockwell Hardness

    C41-55

    C48-55

    Method of Manufacture

    Cold drawn and heat treated before fabrication. Used for shock loads and moderately elevated temperature.

    Cold drawn and heat treated before fabrication. Used for shock loads and moderately elevated temperature.

    Chief Uses





    Special Properties






    Coating : without coating

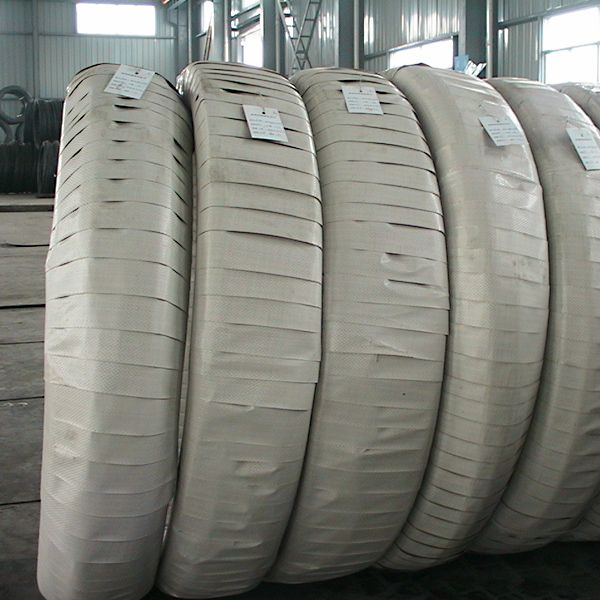

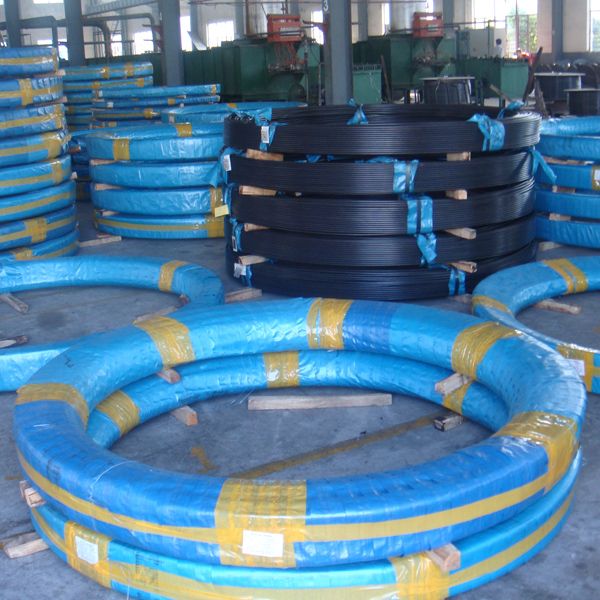

    Packing : in coils, on steel formers or according to your requirements.


    All can be produced according to customers' actual requirement
