Lashing Wire

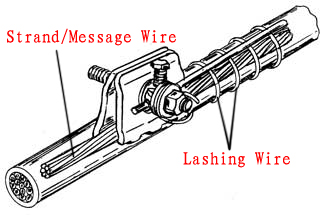

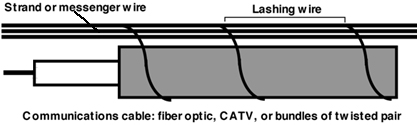

1) Application: Lashing Wire is used in a lasher to lash an aerial cable or combination of cables to a supporting strand.

2) A specially controlled annealing process yields a uniform, fine grain structure throughout wire length and cross section for best results.

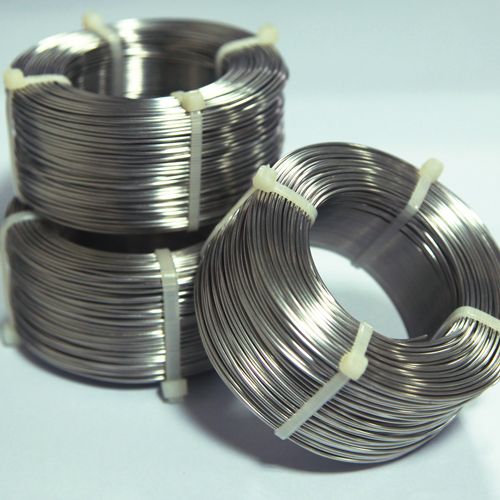

3) The GMP lashing wire is packaged as 6 coils per carton for your ordering convenience.

4) Is available in a 430, 302, 304, 316, 201CU, 200CU-3, D667 and other stainless steel alloy

5) Wire size:  0.8-1.60mm

6) Surface:  Bright, Silvery White

7) Temper:  Soft Annealed

Type 430 Stainless

• Low carbon, 17% chromium wire

• Suitable for general use and in ordinary atmospheric exposure

• Will acquire only a dark surface stain

• Specifically not recommended for use within 25 miles of salt water or industrial operations which emit pollutants

Type 302 Stainless

• 18% chromium, 8% nickel analysis

• This wire has excellent resistance to corrosion from industrial atmospheres

• Its higher tensile strength and breaking load are an added benefit

• A .038 in. diameter Type 302 wire provides strength equal to a .045 in. type 430 wire with better ductility (easier bending and unwinding) and better elongation (less chance of wire breakage from stress)

Type 316 Stainless

• Modified 18-10 analysis containing approximately 2.5% molybdenum

• More resistant to the corrosive action of most chemicals, including chlorides and sulfides, than any other wire

• Particularly resistant to pitting and pin hole corrosion of the kind commonly caused by salt spray

• Its use provides the best insurance against failure under the most severe atmospheric conditions

• All lashing wire is wound in a straight hub configuration to fit all the standard GMP lashers

Buying tip:
When estimating the length of lashing wire required for a cable run, add the following amounts to the length of the run for single lashing.

For double lashing, double the quantity

All can be produced according to customers' actual requirement
