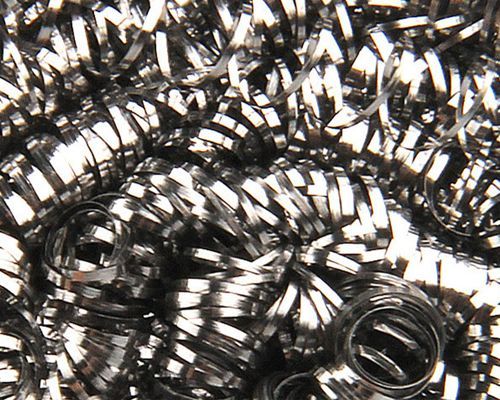

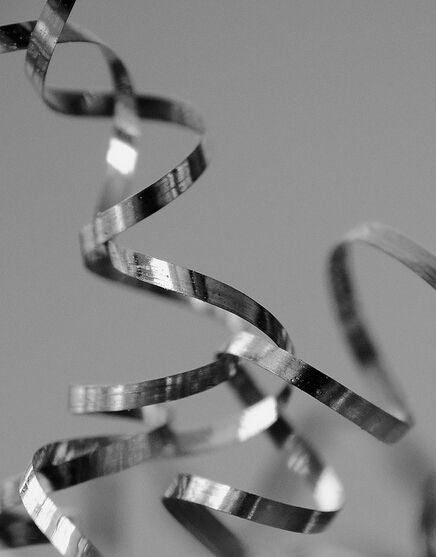

Flat Wire for scourer
1.Material : Low carbon galvanized steel or Stainless steel AISI 430, 304, 430+Cu2.Diameter before flat :0.18mm-0.27mm
3.Color :bright and silver4.Size of section :0.75mm ×0.055mm (common)
5.Tolerance: +/-0.005mm
6.Zinc Coating (if galvanized): >10g/m2
7.Tensile Strength :700-850n/mm2

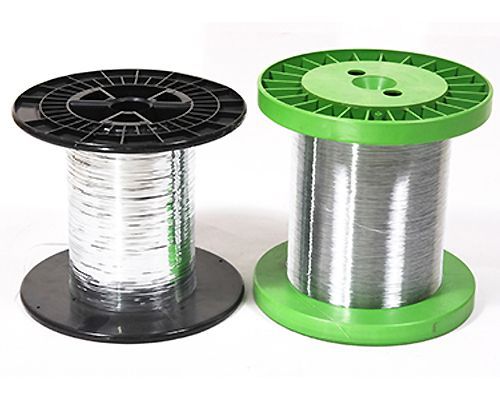

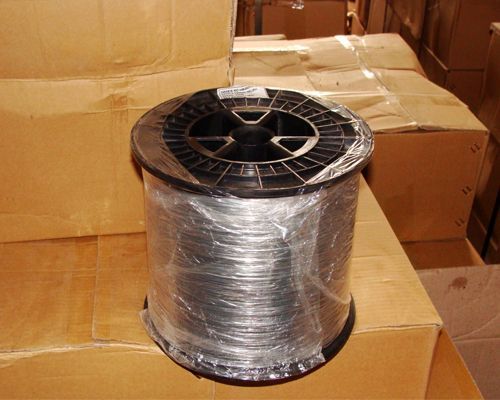

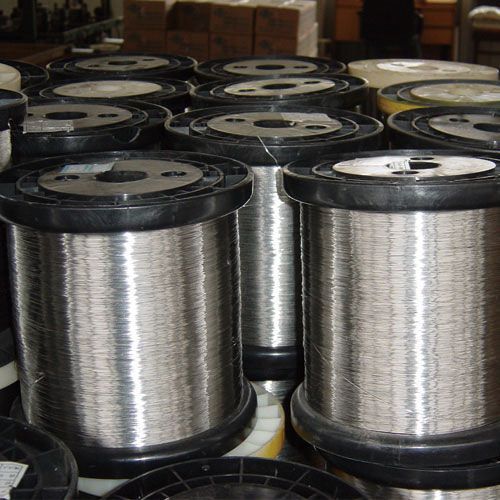

8.Package : on DIN 125 spool, DIN 160 spool, DIN 200 spool, BB 20 spool

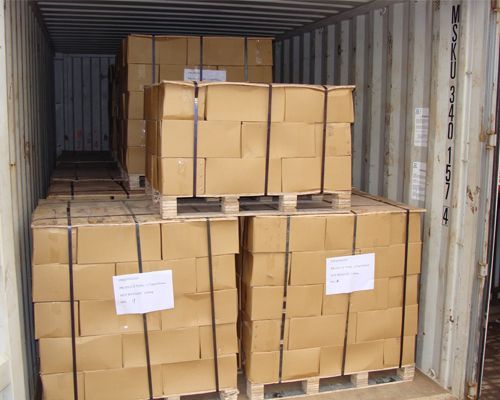

2Spools/Carton, then packing the cartons on a pallet.
Wire Dia. before flat
(mm)
Flat WIre,
Size of section
(mm)
Tolerance
(mm)
Zinc Coating
if Galv.
(>g/m2)
Tensile Strength
(n/mm2)
0.18
0.60×0.045
+/-0.005
>7
750-950
0.20
0.70×0.050
+/-0.005
>8
750-900
0.22
0.75×0.055
+/-0.005
>9
700-850
0.24
0.80×0.055
+/-0.005
>10
650-800
0.27
0.85×0.060
+/-0.005
>11
650-800
