  • Reinforcement Mesh

    Reinforcement Mesh

    Reinforcement Mesh

    Reinforcement Mesh

  • Detailed description

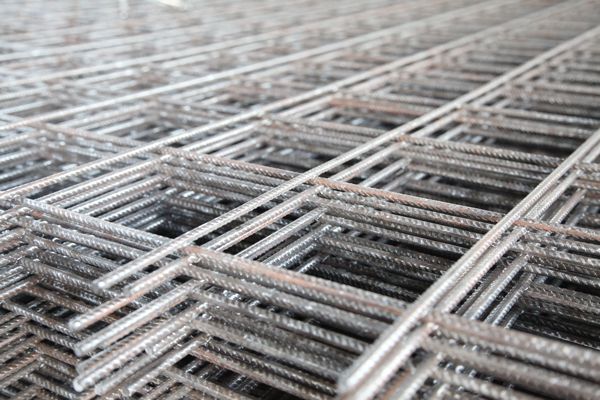

  • Reinforcement mesh is a welded wire fabric, prefabricated steel reinforcement material. It has a rectangular or square reinforcement mesh grid pattern and is produced in flat sheets.

    The wire used in our reinforcing mesh has a ribbed profile. This ribbed profile creates improves bonding to concrete, which when compared to smooth wire profiles, minimizes any concrete cracking that may occur as a result of concrete shrinkage.

    Our reinforcing mesh is with a 500mpa tensile strength and suitable for use in a variety of applications including:

    • Concrete footpaths
    • Industrial and commercial ground slabs
    • Precast Panel construction

    • Residential slabs and footings

    Associated standards:

    AS/NZS 4671 : 2001 Steel reinforcing materials
    AS 3600 : 2009 Concrete structures
    AS 3727 : 1993 Guide to residential pavements
    AS 2870 : 2011 Residential slabs and footings-Construction

    Standard einforcing mesh sizes are 6.0m x 2.4m for the SL and RL range of products.

    Rectangular Rib Mesh Standard Sheets - 6 m (length) x 2.4 m (width) = 14.4m2

    Rectangular Rib Mesh

    Reference No

    Standard Unit

    Main Wires (mm)

    Cross Wires (mm)

    Mass (kg)

    RL1218

    Sheet

    11.9 @ 100

    7.60 @ 200

    157

    RL1118

    Sheet

    10.7 @ 100

    7.60 @ 200

    131

    RL1018

    Sheet

    9.5 @ 100

    7.60 @ 200

    109

    RL918

    Sheet

    8.6 @ 100

    7.60 @ 200

    94

    RL818

    Sheet

    7.6 @ 100

    7.60 @ 200

    79

    RL718

    Sheet

    6.75 @ 100

    7.60 @ 200

    68

    Square Rib Mesh Standard Sheet - 6 m (length) x 2.4 m (width) = 14.4m2

    Square Rib Mesh

    Reference
    No

    Standard
    Unit

    Main Wires
    (mm)

    Cross Wires
    (mm)

    Edge Wires
    (mm)

    Mass
    (kg)

    SL81

    Sheet

    7.6 @ 100

    7.6 @100

    -

    105

    SL102

    Sheet

    9.5 @ 200

    9.50 @ 200

    6.75 @ 100

    80

    SL92

    Sheet

    8.6 @ 200

    8.60 @ 200

    6 @ 100

    66

    SL82

    Sheet

    7.6 @ 200

    7.60 @ 200

    5.37 @ 100

    52

    SL72

    Sheet

    6.75 @ 200

    6.75 @ 200

    4.77 @ 100

    41

    SL62

    Sheet

    6 @ 200

    6 @ 200

    4.77 @ 100

    33

    SL52

    Sheet

    5 @ 200

    4.77 @ 200

    4.77 @ 100

    21

    Square Rib OEM Mesh -Standard Sheet - 4 m (length) x 2 m (width) = 8m2

    Square Rib Mesh

    Reference
    No

    Standard
    Unit

    Main Wires (mm)

    Cross Wires
    (mm)

    Mass
    (kg)

    SL72UTE

    Sheet

    6.75 @ 200

    6.75 @ 200

    22

    SL62UTE

    Sheet

    6 @ 200

    6 @ 200

    18

    Low Ductility Ribbed Trench Mesh

    Low Ductility Ribbed Trench Mesh

    Reference
    No

    Length
    (m)

    Width
    (m)

    Main Wires
    (mm)

    Cross Wires
    (mm)

    Mass
    (kg)

    L8TM200

    6.0

    0.2

    7.6 @ 100

    4 @ 300

    7

    L8TM300

    6.0

    0.3

    7.6 @ 100

    4 @ 300

    9

    L8TM400

    6.0

    0.4

    7.6 @ 100

    4 @ 300

    12

    L8TM500

    6.0

    0.5

    7.6 @ 100

    4 @ 300

    14

    L11TM200

    6.0

    0.2

    10.65 @ 100

    4.77 @ 300

    13

    L11TM300

    6.0

    0.3

    10.65 @ 100

    4.77 @ 300

    18

    L11TM400

    6.0

    0.4

    10.65 @ 100

    4.77 @ 300

    22

    L11TM500

    6.0

    0.5

    10.65 @ 100

    4.77 @ 300

    27

    L12TM200

    6.0

    0.2

    11.9 @ 100

    4.77 @ 300

    16

    L12TM300

    6.0

    0.3

    11.9 @ 100

    4.77 @ 300

    22

    L12TM400

    6.0

    0.4

    11.9 @ 100

    4.77 @ 300

    27

    L12TM500

    6.0

    0.5

    11.9 @ 100

    4.77 @ 300

    33
